M3 Multiplex Master Mix - PCR
"Hot Start" Taq DNA polymerase, MAB inhibited.
- Multiplex PCR optimized (many targets per assay).
- No "proofreading".
- Convenient, stable master mix.
- Contains separate, optional Color Load solution for direct gel loading.
Detailed Product Description
English Version
Deutsche Version
Application Examples
Figure 1: Simultaneous multiplex PCR amplification of 11 bands with six different primer pairs on human genomic DNA. One primer per each pair carries a fluorescent label. Amplification targets: Sex marker amelogenin and five STRs.
- 20 µl reaction volume, 5 ng human DNA, 0.2 µM each primer.
- PCR cycler program: 95°C, 5 min - 28 x ( 94°C, 30 s | 58°C, 90 s | 72°C, 30s ) - 60°C, 30 min.
- Analysis instrument: ABI PRISM 310 Genetic Analyzer.
Figure 2: Multiplex PCR amplification using six primer pairs (including 2 primer pairs for vWA and D21S11 STRs) and human genomic DNA. Detection by agarose gel analysis.
Reaction parameters:
- 20 µl reaction volume, 10 ng human DNA , 0.2 µM each primer.
- PCR cycler program: 95°C, 5 min - 35 x ( 94°C, 30 s | 58°C, 90 s | 72°C, 90s ) - 68°C, 7 min
Multiplex PCR Master Mix (2x) - Package Contents
PCR Master Mix Logsheet

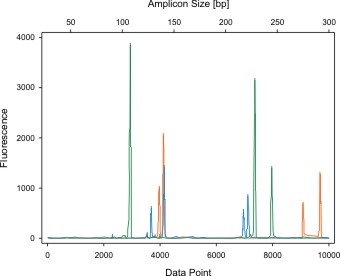

Figure 1: Simultaneous multiplex PCR amplification of 11 bands with six different primer pairs on human genomic DNA. One primer per each pair carries a fluorescent label. Amplification targets: Sex marker amelogenin and five STRs.
- FAM (blue): D3S1358, D21S11,
- TET (green): Amelogenin, D7S820,
- HEX (yellow): D5S818, TPOX.
- 20 µl reaction volume, 5 ng human DNA, 0.2 µM each primer.
- PCR cycler program: 95°C, 5 min - 28 x ( 94°C, 30 s | 58°C, 90 s | 72°C, 30s ) - 60°C, 30 min.
- Analysis instrument: ABI PRISM 310 Genetic Analyzer.

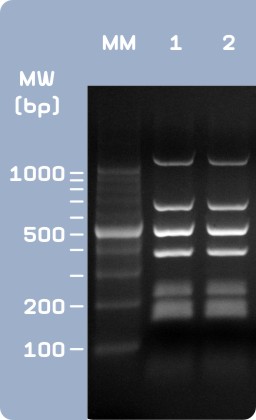

Figure 2: Multiplex PCR amplification using six primer pairs (including 2 primer pairs for vWA and D21S11 STRs) and human genomic DNA. Detection by agarose gel analysis.
Reaction parameters:
- 20 µl reaction volume, 10 ng human DNA , 0.2 µM each primer.
- PCR cycler program: 95°C, 5 min - 35 x ( 94°C, 30 s | 58°C, 90 s | 72°C, 90s ) - 68°C, 7 min
- Molecular weight marker MM: (Perfect 100-1000 bp DNA Ladder).
- 1, 2: Simultaneous amplification of six loci on human genomic DNA using six primer pairs.
Multiplex PCR Master Mix (2x) - Package Contents
- Multiplex PCR Master Mix (2x)
- PCR Water (Nuclease Free)
- 10x Color Load (Optinal reaction component: Coloured reaction buffer, for direct gel loading)
- Optionally supplied, if needed:
- 25 mM MgCl2 solution. If required, please request this component along with your order.
PCR Master Mix Logsheet
